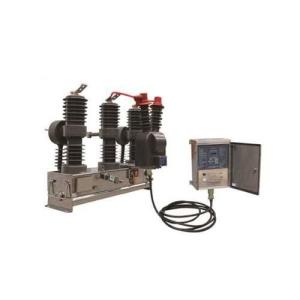

36 Kv Vacuum Circuit Breaker Automatic Recloser Circuit Breaker

Name: 36 Kv Vacuum Circuit Breaker Automatic Recloser Circuit Breaker
Brand: KNKONG
Price: 1000 USD

Brand Name : KNKONG

Model Number : ZW30

Certification : ISO IEC GB

Place of Origin : China

MOQ : 1

Price : USD 1000-2000 Each

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 Unit per month

Delivery Time : 15 working days

Packaging Details : Standard export packaging

Voltage : 15-38KV

Frequency : 50/60Hz

Current : 630-1600A

Standards : CCC ISO GB IEC

OEM/ODM : Inquiry by email

Manufactory : KNKONG

Contact Now

36 Kv Vacuum Circuit Breaker Automatic Recloser Circuit Breaker

Auto Recloser

15~38kv,50/60HZ,630/1250/1600A
Permanent magnet mechanism+High reliability intelligent control system
OEM & ODM,Complete epuipment
Comply with IEC Standards

Inquire

Product Introduction

Auto recloser is composed of permanent magnet mechanism and high reliability intelligent control system. It used to medium-voltage overhead power grid; It can be breaking, closed, load current, overload current, short circuit current, also has 0-3 times automatic reclosing function

Normal service condition:

1. Altitude≤2000(optional≤4000)

2. Ambient temperature: -30℃ to 70℃(optional -40℃ to 70℃)

3. Ambient humidity:Maximum average humidity 24 hour ≤95%1 month ≤90%

4. Maximum water vapor pressure:24 hours ≤2.2kpa1 month ≤1.8kpa

5. The ambient air has no obvious pollution of dust smoke, corrosive or combustible gases, steams or smog

Features

1. high reliability, high mechanical and electrical life

2. No maintenance

3. Small size, light weight, easy to install

4. Standard relay protection and quick automatic reclosing function

Technical Parameters

No.	Item		Unit	Date
1	Rated voltage		KV	12/15/17.5	24/25.8/27	36/38
2	Rated current		A	630/800/1250/1600
3	Rated frequency		Hz	50/60
4	Power frequency	Dry(1 min.)
